Cross Form Wrench (Dolphin Wrench)

Chih Tai Y&S Co., Ltd.

No.20, Lane 70, Sec.5, Yang-Hai Rd., Fu-Hsing Hsiang, Changhua, Taiwan

Tel:886-4-7764112 7771377 Fax: 886-4-7771692

P.O.Box: 107 Lukang E-mail: chihtai@ms16.hinet.net

Item No.: CH1308191-DW

Cross Form Wrench (Dolphin Wrench)

Feature:

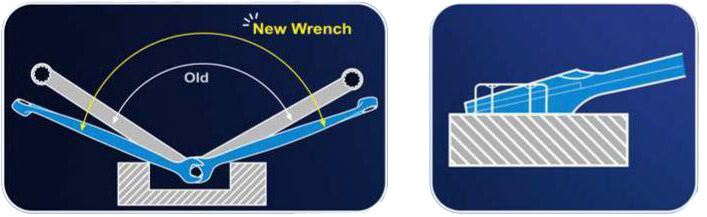

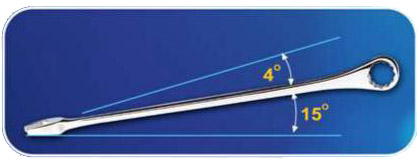

15 degree offset at open-end provides more convenient working space.

More extensive application range open-end

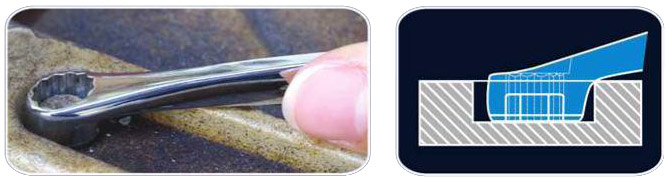

Contrived bottom flare shape provides better accessibility for reaching confined spaced nuts.
	Proper fit -lateral force applying system

Size(Metric):

6mm x 132mmL ；7mm x 132mmL ；8mm x 141mm

9mm x 146mmL ；10mm x 153mmL；11mm x 162mmL

12mm x 167mmL；13mm x 176mmL；14mm x 186mmL

15mm x 190mmL；16mm x 205mmL；17mm x 218mmL

18mm x 228mmL；19mm x 238mmL；20mm x 270mmL

21mm x 270mmL；22mm x 292mmL；23mm x 292mmL

24mm x 304mmL；25mm x 304mmL

Size(SAE):

1/4”x 132mmL；5/16” x 141mmL；3/8” x 153mmL

7/16”x162mmL；1/2” x 176mmL；9/16” x 186mmL

5/8” x 205mmL；11/16” x 218mmL；3/4” x 238mmL

13/16” x 270mmL；7/8” x 292mmL；15/16” x 304mmL
